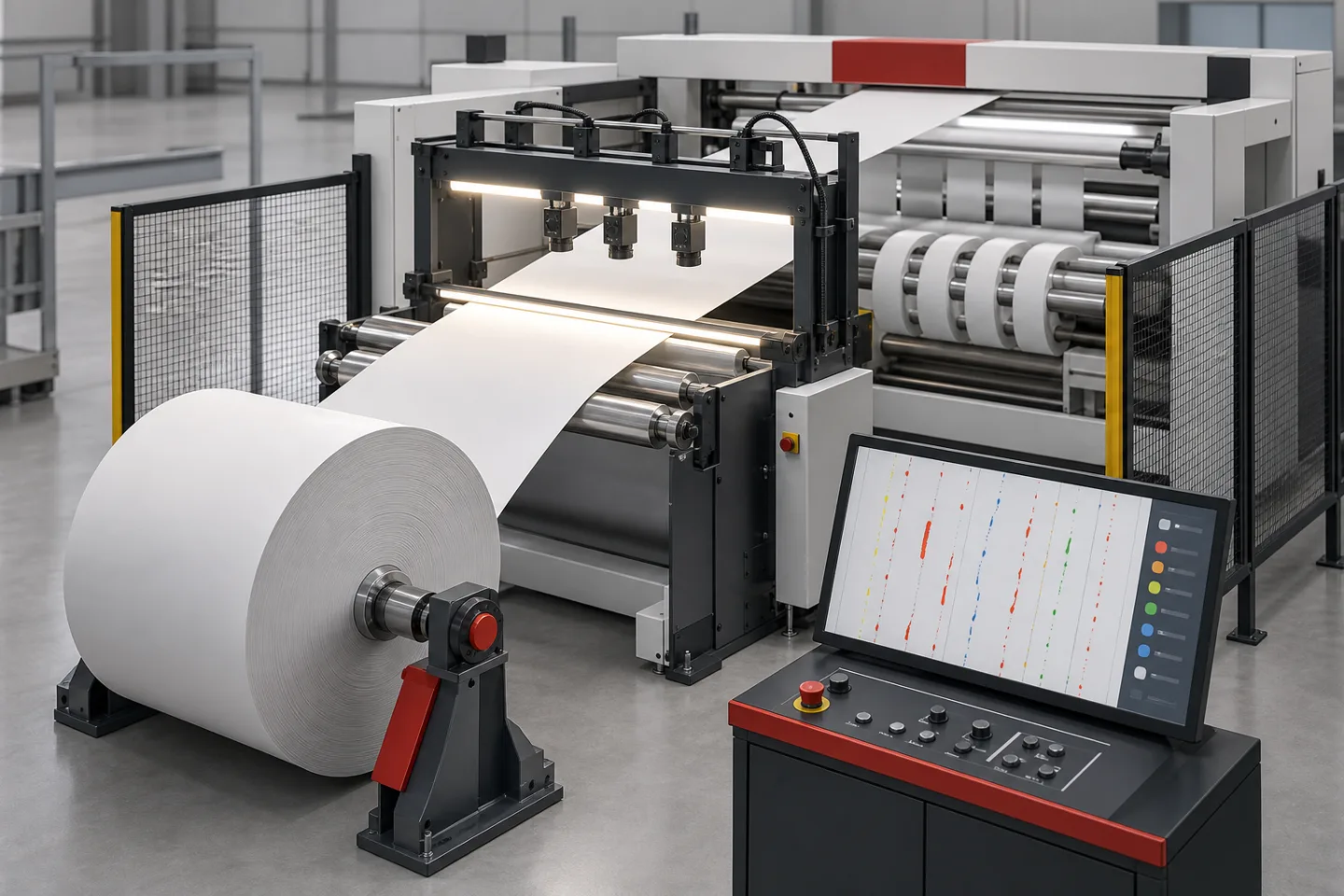

Slitter Rewinder Inspection System: Technical Specification and Integration Guide

Published July 19, 2026 | By HDPTH Technical Editorial Team

For overseas buyers, inspection is not only a camera question. It is a machine specification question. A camera or monitor can only perform well if the web path is stable, the inspection point is accessible, the lighting is protected from dust and glare, and the operator has a clear method for responding to the defects that matter.

Gemini's draft for this article framed the slitter rewinder as a final quality gate. That is the correct buyer question, but it needs careful wording: the slitter rewinder may be the last converting step before finished rolls ship, so it is often the practical place to verify incoming web defects, slit-edge condition, dust problems, coating marks, holes, spots, wrinkles, scratches or lane-specific issues. Whether the inspection system only helps operators see those problems or also creates digital defect records depends on the selected inspection package.

Inspection terms buyers should separate

Suppliers may use words like inspection, monitoring, camera system, defect detection and vision system in different ways. Before comparing quotations, define the functional level you actually need. A basic system for watching web behavior is not the same as a web inspection system that classifies defects and exports roll reports.

When inspection belongs on a slitter rewinder

Not every slitting line needs advanced inspection. A converter running low-risk material, wide tolerances and long internal-use rolls may only need normal operator checks and roll inspection. Inspection becomes more valuable when defects are costly to discover after shipment, when customers request roll records, or when high running speed makes visual monitoring unreliable.

Common triggers include medical or hygiene nonwovens where holes and contamination are important, PE film or laminates where gels and scratches can affect downstream printing or sealing, paper and specialty webs where coating marks or edge damage must be found, and multi-lane slitting where one defect may affect only certain finished rolls. Buyers should define defects by business impact, not by a generic wish to "find everything."

HDPTH's public product pages show that its converting projects are configured around material, width, speed, knife system, winding method, controls and layout. That same project-based logic should apply to inspection. Review the slitting and rewinding lines page and the high-speed slitting machines page when deciding where inspection hardware could physically fit into the line.

Upstream or downstream of the knives?

Gemini's draft highlighted a key layout decision: inspection before or after the slitting section. Upstream inspection checks the master web before it is divided into lanes. This is often simpler for finding incoming material flaws because one inspection span sees the full width. It can also provide a cleaner reference before knife dust, trim removal or lane separation changes the web behavior.

Downstream monitoring can be useful when the buyer wants to observe slit edges, lane tracking, ribbon separation, trim removal or knife-related symptoms. It may need more careful framing because the web has already been divided into lanes. Some projects may justify both an upstream inspection position and a downstream video monitoring point, but that decision should be based on real defect risk and plant workflow, not on feature lists.

Material behavior drives the inspection method

Web inspection suppliers discuss different lighting and camera approaches because materials behave differently under light. Porous nonwovens, paper, transparent film, opaque film and coated laminates do not produce the same optical signal. Dust, static charge, web flutter, reflective surfaces and edge weave can all affect whether a camera sees a true defect or a process artifact.

For nonwovens, buyers may care about holes, thin areas, oil spots, fiber clumps, contamination or edge damage. For paper, coating marks, holes, tears, creases and dirt may be the main concerns. For PE film and flexible materials, scratches, gels, pinholes, inclusions or haze changes may matter. The inspection supplier should confirm what the selected hardware can realistically detect on the buyer's samples, while the machine builder should confirm that the line layout supports stable web presentation.

This topic connects with HDPTH's existing guide on slitter rewinder roll defects, but the purpose is different. Roll-defect troubleshooting looks at symptoms after the roll is produced. Inspection-system specification asks how the machine should be designed so those defects can be observed, logged or removed during converting.

Machine integration points to define early

A buyer should not leave inspection integration until after the mechanical line is designed. Camera bridges, light boxes, monitors, operator workstations, splice tables, cable routing and control interfaces all need physical space. If those items are added late, the project can lose maintainability or require awkward web routing.

The inspection zone should have a stable web span. Tension control, web guiding, roller alignment and vibration control matter because a moving camera image depends on a consistent web plane. If the material flutters, wanders or changes tension through the inspection point, the image can blur or the defect location can shift. For background on web stability, see HDPTH's guide to automatic tension control and web guiding.

Dust and static also deserve attention. Converting paper, wood-pulp composites or dry nonwovens can create particles that settle on lenses and light covers. Static can attract contamination toward the web and inspection area. Buyers should ask whether dust extraction, enclosed optical areas, cleaning access or static-control points need to be coordinated with the inspection supplier.

Defect handling: log, mark, slow, stop or remove?

The most important practical question is what happens after a defect is detected. Some plants only need a visual record. Others need an alarm, a defect map, a printed roll report, a label or mark near the defect, a slow-down sequence, or a stop-at-defect workflow that brings the suspect section to a splice table. These are different automation scopes.

In a stop-at-defect concept, the inspection package identifies a defect position and the machine control system uses line length information to stop the web near an accessible point. This is not something buyers should assume from the word "inspection." It requires defined signals, a suitable web path, controlled deceleration, operator access and testable acceptance criteria. If the buyer wants defect removal, the machine also needs a clear splicing or reject-handling procedure.

For multi-lane slitting, ask how defect information is assigned to finished rolls. A master-web defect may affect only one slit lane. A downstream edge defect may affect one roll position. The RFQ should state whether the buyer needs roll-by-roll reporting, lane assignment, data export, printed labels or only operator review.

RFQ checklist for an inspection-ready project

To receive a meaningful proposal, prepare more than a broad request for a "vision system." Include the specific quality workflow the plant wants to run. A good RFQ should cover:

• Material family, opacity, surface reflectivity, color range, thickness or basis weight, dust level and static behavior.
• Parent-roll width, slit widths, number of lanes, finished-roll diameter, core size and target running speed.
• Defect types of concern, such as holes, spots, gels, scratches, coating voids, edge tears, contamination, wrinkles or lane wander.
• Preferred inspection location: master web before slitting, slit lanes after knives, rewind area, or a separate inspection rewinder workflow.
• Expected response: watch only, alarm, log, mark, slow, stop near a splice table, remove material, or export a roll report.
• Chosen third-party inspection supplier, if already selected, including required space, power, communication and data requirements.
• FAT evidence required before shipment, including sample defects, test material, screenshots, video angles and reporting files.

HDPTH's nonwoven rewinding machines page emphasizes stable tension and controlled rewinding, while the inquiry page asks buyers to submit material, target width, speed, application and product requirements. For an inspection-ready machine, add defect and workflow details to that same RFQ package.

Inspection-specific FAT checks

A normal factory acceptance test confirms machine operation, slitting quality, roll formation, controls and shipment readiness. Inspection adds a separate layer. Buyers should define testable criteria before FAT, then compare the machine response against the agreed inspection scope.

Useful checks include web stability through the inspection zone during start, acceleration, stable running and deceleration; visibility of the camera or monitor screen; access for cleaning lenses and light covers; signal exchange between inspection hardware and machine controls if included; repeatability of any stop-at-defect workflow; and the quality of reports or exported files if reporting is part of the purchase.

Do not rely only on a demonstration with ideal material. If possible, send representative samples with known issues or create agreed sample defects that the inspection supplier can approve for testing. Record whether the test proves only machine integration, only camera detection, or the full workflow from detection to operator action. For broader machinery checks, use HDPTH's slitter rewinder FAT checklist.

Shipment and installation preparation

Inspection hardware can be more sensitive than heavy mechanical frames. Before shipment, buyers should confirm how cameras, lenses, monitors, lighting components and control cabinets are protected, documented and packed. If components must be removed for transport, the packing list should make reinstallation clear.

At the installation site, prepare the inspection area before the machine arrives. Review power quality, air quality, lighting, dust generation, compressed air requirements for any lens purging system, operator screen location, network access for reports and safe maintenance access. OSHA 29 CFR 1910.212 is a general United States reference for guarding point-of-operation, ingoing nip-point and rotating-part hazards. The buyer's local safety team must apply the correct regional rules to the final installation.

Buyer FAQs
